70t Coles R600 (roomik)

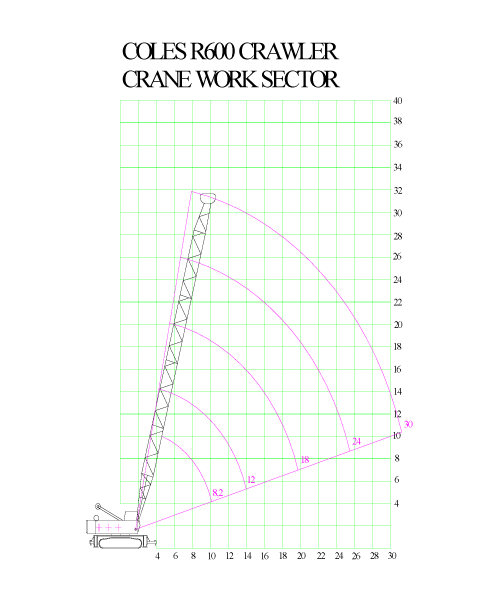

Work sector

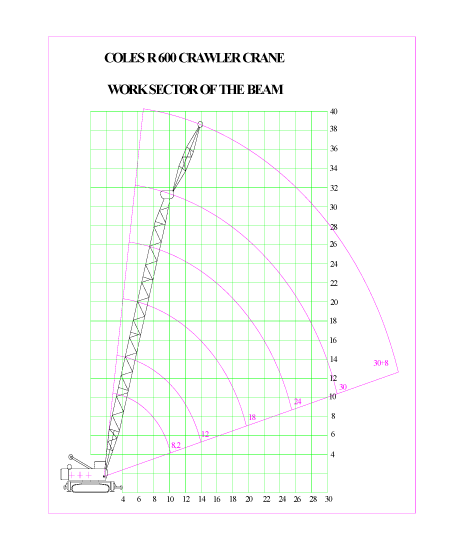

Nooleulatus

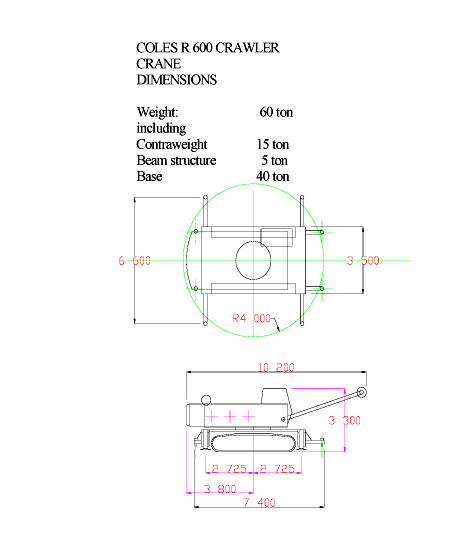

Mõõdud

Noole pikkus m 8.2 12 18 24 30 36
Tõstekaugus m
3 70 60
3.5 70 60
4 54 54 50
4.5 48.5 48.5 48.3 45
5 44 44 43.4 42.4
6 36.5 36.5 36 35.9 33.2
7 31.6 31.6 31.2 30.8 28.8
8 27.5 27.3 26.5 25
9 24 24 22.8 22.6
10 21 20 20.4
12 16 15.7 15.7
14 12.6 12.6 12.3
16 10.3 10.1
18 8.7 8.4
20 7.1
22 6.1
24
26
28
30
